Leaching Process of Copper: Heap, Vat, Agitation, In-Situ

How Copper Leaching Works: The Chemistry in Plain Terms

The leaching process of copper is, at its core, a controlled acid wash. You're using a weak sulfuric acid solution to dissolve copper from rock, then you recover the copper from that liquid. It sounds simple. It rarely is. Oxide minerals like malachite, azurite and chrysocolla dissolve quickly in dilute sulfuric acid. Sulfide minerals like chalcopyrite dissolve slowly, and often not at all under ordinary heap conditions. That difference alone pushes projects toward entirely different routes.

Dilute sulfuric acid is the standard leach solution for oxide copper, and the chemistry is straightforward. The acid attacks the copper carbonate or silicate mineral, putting copper into solution as copper sulfate. The problem is that the acid doesn't care what it dissolves. Limestone and dolomite in the ore will consume acid before copper does. Carbonate gangue is the single biggest hidden cost in a leaching project. It's not exaggerated to say an ore can be completely uneconomic because of its acid consumption, even when the copper grade looks decent.

In sulfide systems, pyrite oxidation can actually produce acid. That acid then attacks other minerals and can make the leach solution self-generating in part. But pyrite oxidation also releases iron, sulfate and sometimes other metals that you'll have to manage downstream. Don't assume that some acid is good means unlimited acid is better. The full picture matters. Xinhai reports a CNAS-accredited laboratory covering 70+ ore types, about 5,000 element analyses per month, and Bond work index testing. That kind of upfront characterisation is exactly what prevents an owner from choosing a leaching route on a wrong mineralogy.

The Five Main Copper Leaching Methods Compared

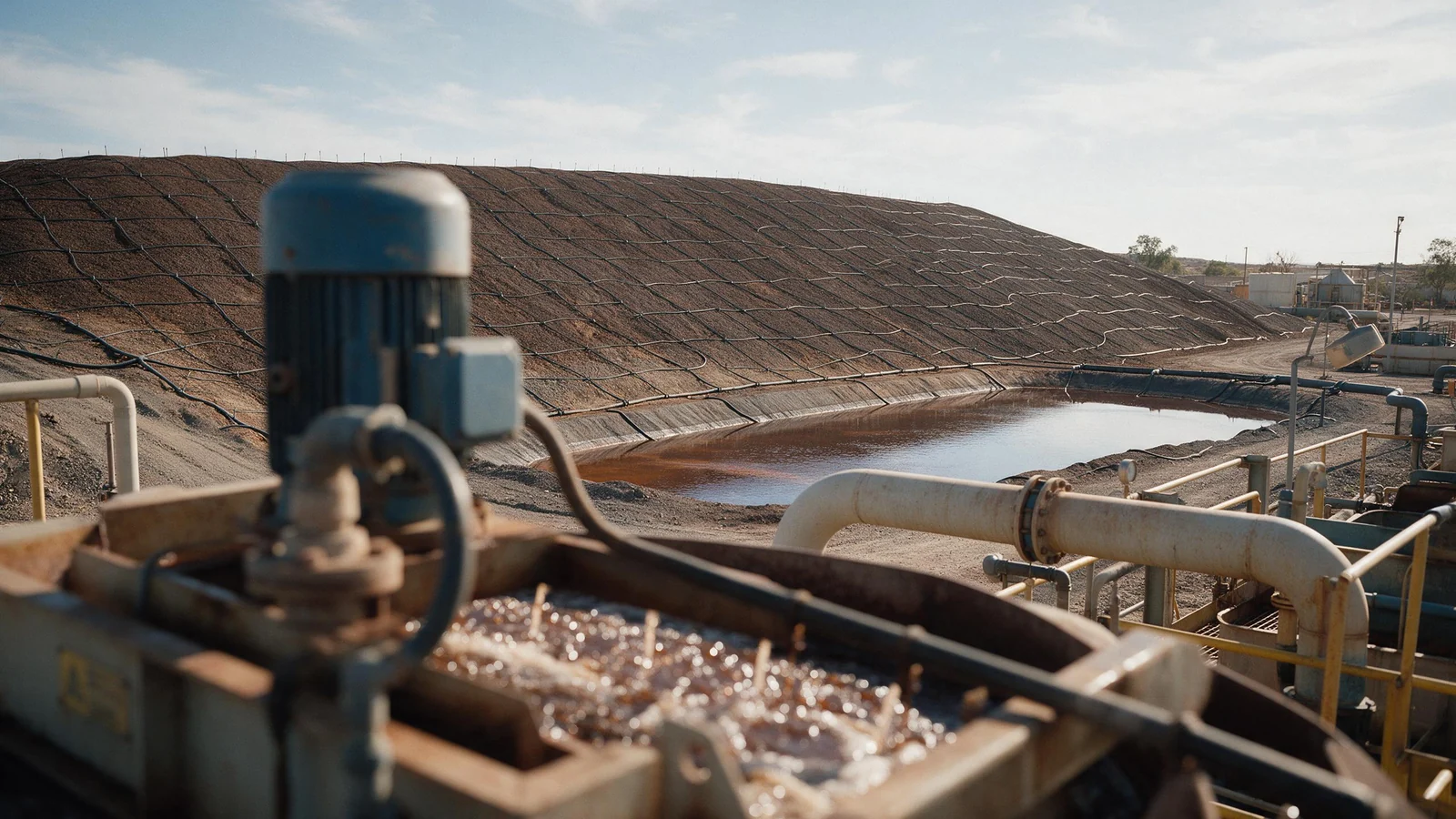

There are five workable methods, and they sit along a spectrum of cost, particle size and time. Dump leaching works on run-of-mine waste or very low grade material. It's cheap but slow, often measured in years. Heap leaching uses crushed, porous oxide ore. It's faster than dump, typically measured in months. Vat leaching puts crushed or ground ore in a contained tank, giving better control and faster response than an open heap. Agitation leaching is for concentrates or finely ground ore that needs rapid kinetics and can justify the extra cost. In-situ recovery leaves the ore in the ground and circulates leach solution through it, but only works where the rock is permeable and the hydrogeology cooperates.

That table is a first cut, not a decision. You'll notice each method trades capital cost against time and ore response. A heap leach on a poorly percolating ore will simply not wet the whole heap, and you'll leave copper behind. A vat leach on run-of-mine waste would be far too expensive. The method follows the mineralogy and the particle size, not the other way round.

Which Ore Suits Which Leaching Route

Grade alone is a poor selector. An oxide copper ore at modest grade might heap leach perfectly well if the rock is porous and the acid consumption is low. The same grade as a mixed sulfide oxide ore with heavy clay could be a leaching disaster. Permeability matters more than people expect. Clay swells, blocks flow and channels the solution into a few paths. Crush size changes everything as well. Crushing finer exposes more copper but increases fines and can cut percolation unless you agglomerate the ore.

Start with acid solubility. A bottle-roll test will tell you how much copper dissolves in a few hours or days. If the acid-soluble copper is high and the gangue consumption is low, heap or vat becomes attractive. If acid consumption is high or the copper is locked in sulfides, flotation usually wins. That's the pattern in the published copper cases I can point to: Xinhai's published oxide and mixed copper cases use flotation, not leaching. I won't pretend otherwise. For an owner with mixed copper, the safer route is often flotation to a saleable concentrate, then let a smelter handle the rest.

In-situ recovery only makes sense where the ore body is naturally permeable or can be fractured without sealing itself. You need a contained aquifer, you need good solution capture, and you need a regulator who accepts it. Most hard-rock copper deposits don't qualify. That's just the hydrogeology.

Acid Consumption: The Hidden Cost Driver

Acid consumption is the first number a good metallurgist wants, before recovery. Carbonate minerals react with sulfuric acid to produce gypsum and carbon dioxide. That reaction happens before copper dissolution, and it can be enormous. A high limestone ore consumes a large share of the acid before any copper dissolves. If that acid consumption outstrips the value of the copper you'll recover, the project is dead on arrival. You don't need a detailed economic model to see it.

The US Environmental Protection Agency's own leach studies put it plainly: gangue minerals can neutralise large quantities of acid and, by their decomposition, add various species to the leaching solution. That is not a minor footnote. It drives the entire flowsheet. If you're evaluating a deposit, get a full carbonate and reactive gangue analysis. Run static acid consumption tests at different crush sizes. Then run kinetic tests over weeks to see how much acid keeps being consumed as fresh surfaces oxidise. Only then can you trust the reagent estimate.

In the US, solvent extraction electrowinning accounted for 46% of mine production in 2021, according to the USGS. SX-EW depends on a healthy acid balance: acid is consumed in leaching, then partially regenerated in electrowinning and recycled as raffinate. A high acid-consuming ore forces you to add much more fresh acid, which changes the operating cost and can push a project away from leaching entirely.

From Pregnant Solution to Copper Cathode

Once you have a pregnant leach solution, the copper is still dissolved in a dirty liquid. You need to concentrate it and plate it. For industrial scale, the standard route is solvent extraction followed by electrowinning. Solvent extraction moves copper from the pregnant solution into a clean, high-copper electrolyte. It strips out iron, aluminium and other impurities. Then electrowinning plates that copper onto stainless steel cathodes. The result is saleable copper cathode, typically pure enough for LME delivery. My colleague page on SX-EW goes into that circuit in detail, so I won't repeat it here. The key point: a copper leach project is not complete until the PLS is processed.

Small operations sometimes use cementation instead. You add scrap iron to the pregnant solution and copper precipitates as a metallic sludge while iron dissolves. It's simple and cheap to build. The copper product is impure and needs further refining. Cementation makes sense for a tiny starter operation or as a temporary step before an SX-EW plant is justified. It is not a long-term replacement.

Raffinate, the acid solution left after solvent extraction, is recycled back to the heap or vat. That recycle is what makes the acid balance work. You top up with fresh acid only for what the gangue consumed and what left with the tailings moisture. The tighter that recycle, the lower the acid cost per pound of copper.

Column and Bottle-Roll Tests: The Decision Gate

No owner should choose a leaching route on guesswork. Two bench tests do most of the heavy lifting. A bottle-roll test is a short, agitated leach in a bottle. It measures acid solubility, reagent demand and the short-cycle response of the ore. A column test packs crushed ore into a tall pipe and percolates acid through it for weeks or months. It measures percolation, permeability, longer-cycle recovery and real acid consumption over time. If the bottle-roll looks promising but the column plugs or channels, the method will fail in the field.

A credible test programme needs representative samples, not a single grab sample from one spot. Split the samples by ore type and by depth if the deposit varies. You'll need enough mass for parallel tests at two or three crush sizes. You'll need a full multi-element assay, carbonate quantification, clay identification and a particle size distribution. Those are the numbers any reputable contractor or laboratory should ask for before quoting a flowsheet.

• Representative composite samples by ore type
• Multi-element assay including acid-consuming elements
• Carbonate and reactive gangue quantification
• Particle size distribution and clay content
• Bottle-roll and column leach tests at different crush sizes

The result of this testwork is not a single readout. It's a ledger of acid consumption, copper extraction, percolation rate and impurity loading. You compare that with the capital and operating profiles of each route. Then you pick the one that actually fits the ore, not the one in the presentation.

Where Leaching Fits in a Small-Scale Copper Plant

For many small owners, leaching is not the answer. If your ore is a mixed oxide sulfide copper at a grade you'd expect in a small deposit, flotation will usually be the safer and more robust route. It produces a concentrate you can sell to a smelter, and it handles variable mineralogy far better than a heap. The owner gets a product, not a long environmental liability. Xinhai's published small copper flotation cases show that pattern. I'll say it again: at the time of writing, I have no published Xinhai copper leaching project to point to. That honesty is more useful than a scripted claim.

If you do want to evaluate a leaching route for a small oxide deposit, start with the testwork above. The copper processing solutions page covers both flotation and leaching routes, and the small-scale copper processing plant page walks through the equipment and flowsheet options in detail. Xinhai reports an intelligent equipment research institute with a 110,000 m² facility and 200+ patents, capable of supplying complete main and auxiliary equipment for mines below 50,000 t/d. That capability spans the flotation and leaching equipment families you'd need, but the flowsheet decision still comes first.
